If your air conditioner or heat pump in Apache Junction is over 15 years old, uses obsolete R-22 freon, or faces a major compressor failure, call (321) 666-8870 to connect with independent local HVAC contractors. Local pros provide ACCA Manual J load calculations, Southwest 14.3 SEER2-compliant equipment, and transparent written estimates for houses and manufactured homes.
Replacing a central air conditioning system or heat pump is one of the most consequential capital investments an East Valley property owner will make. In Apache Junction, where summer cooling loads place relentless strain on mechanical compressors for over five months each year, proper sizing, quality duct transitions, and code-compliant electrical disconnects dictate whether your system lasts 12 to 15 years or fails prematurely in year six. Connecting directly with vetted local professionals ensures you receive an unbiased evaluation of whether repairing your current unit or installing modern high-efficiency equipment delivers the best long-term value.
What Full HVAC Replacement Includes
A turn-key HVAC replacement covers far more than swapping metal boxes. Independent contractors serving Apache Junction handle the entire mechanical, electrical, and regulatory process from start to finish:
Manual J Load Calculation
Computerized engineering sizing based on square footage, ceiling heights, window solar heat gain coefficients, and desert insulation levels.
EPA Refrigerant Recovery
Safe, environmentally certified extraction and recycling of existing R-22 or R-410A refrigerant into approved recovery cylinders.
Pad & Curb Fabrication
New composite ground equipment pads or custom-fabricated roof curb transition adapters to guarantee watertight, vibration-isolated mounting.
Electrical Disconnect Upgrades
Installation of new outdoor fused electrical disconnect boxes, liquid-tight flexible conduit (whip), and dedicated circuit breakers.
Nitrogen Brazing & Deep Vacuum
Oxyacetylene line brazing under continuous dry nitrogen purge, followed by two-stage vacuum pump evacuation below 500 microns.
City Permitting & Inspection
Pulling the required $150 City of Apache Junction residential mechanical permit and coordinating final municipal safety sign-off.
When Does Replacement Make Financial Sense?
In Arizona's extreme climate, cooling equipment ages faster than in milder states. An air conditioner running 2,500 to 3,000 hours per year undergoes the equivalent of 20 years of northern operational wear in just a decade. Use these four industry metrics when evaluating whether to repair or replace:
The 5,000 Rule
Multiply the age of your equipment in years by the estimated repair cost. If the product exceeds $5,000 (e.g., a 14-year-old unit needing a $450 repair equals $6,300), replacement is typically the more cost-effective long-term financial decision rather than sinking capital into an aging system.
R-22 Freon Obsolescence
If your system was manufactured before 2010, it likely operates on R-22 refrigerant. Production and importation of R-22 have been banned nationwide. Sourcing reclaimed R-22 to fix an evaporator leak is economically unsound and leaves you vulnerable to repeated future leaks.
Compressor Burnout or Grounding
When a hermetic compressor motor shorts to ground or suffers mechanical valve failure on an older unit, replacing the compressor alone costs $1,800 to $2,800 without addressing an aged outdoor coil, worn fan motor, or deteriorating indoor air handler.
Ductwork & Airflow Imbalance
Older homes in Apache Junction and 2000s tract builds in San Tan Valley often suffer from undersized return plenums. A modern replacement can incorporate duct modifications to eliminate hot rooms and lower electric bills by up to 30%.
Standards-Based Sizing: ACCA Manual J, S & D
Rule-of-thumb sizing (such as assigning 1 ton of cooling for every 500 square feet) leads to serious comfort problems in the Sonoran Desert. An oversized system cools the air too rapidly without running long enough to lower indoor humidity, while an undersized unit runs continuously at 110°F without satisfying the thermostat.
Independent contractors follow recognized standards established by the Air Conditioning Contractors of America (ACCA):
Load Calculation
Calculates the exact sensible and latent heat gain of your home based on window glass exposure, attic insulation R-values, wall orientation, air leakage, and local climate data.
Equipment Selection
Matches the equipment's actual sensible capacity at desert design temperatures (108°F–112°F outdoor ambient) against the Manual J load to prevent derating issues.
Duct System Design
Verifies that supply and return duct sizing can deliver the required CFM of airflow (typically 350–400 CFM per ton) without creating excessive static pressure.
The 6-Step HVAC Installation Workflow
A successful air conditioning replacement requires strict adherence to mechanical codes, manufacturer procedures, and safety standards. Here is how your installation proceeds:
In-Home Load Calculation & Duct Assessment

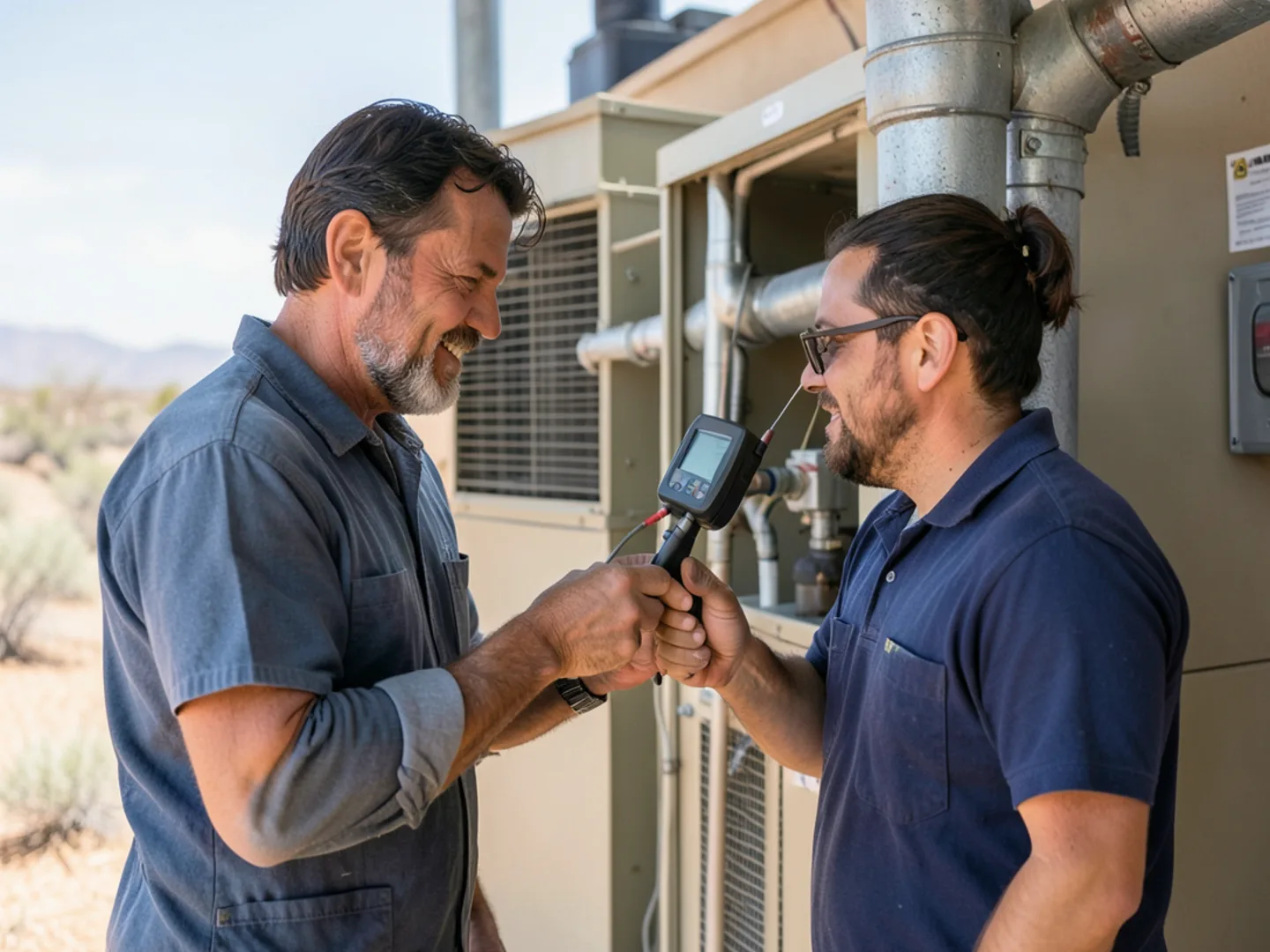

The contractor inspects your electrical service panel, measures duct static pressure using a digital manometer, and calculates sensible heat gain via ACCA Manual J to specify the exact cooling tonnage required.
EPA Certified Refrigerant Recovery & System Removal
Existing refrigerant is evacuated into certified recovery cylinders per EPA Section 608 guidelines. Old equipment is disconnected, hauled away, and delivered to registered scrap and recycling facilities.
Equipment Positioning & Structural Mounting

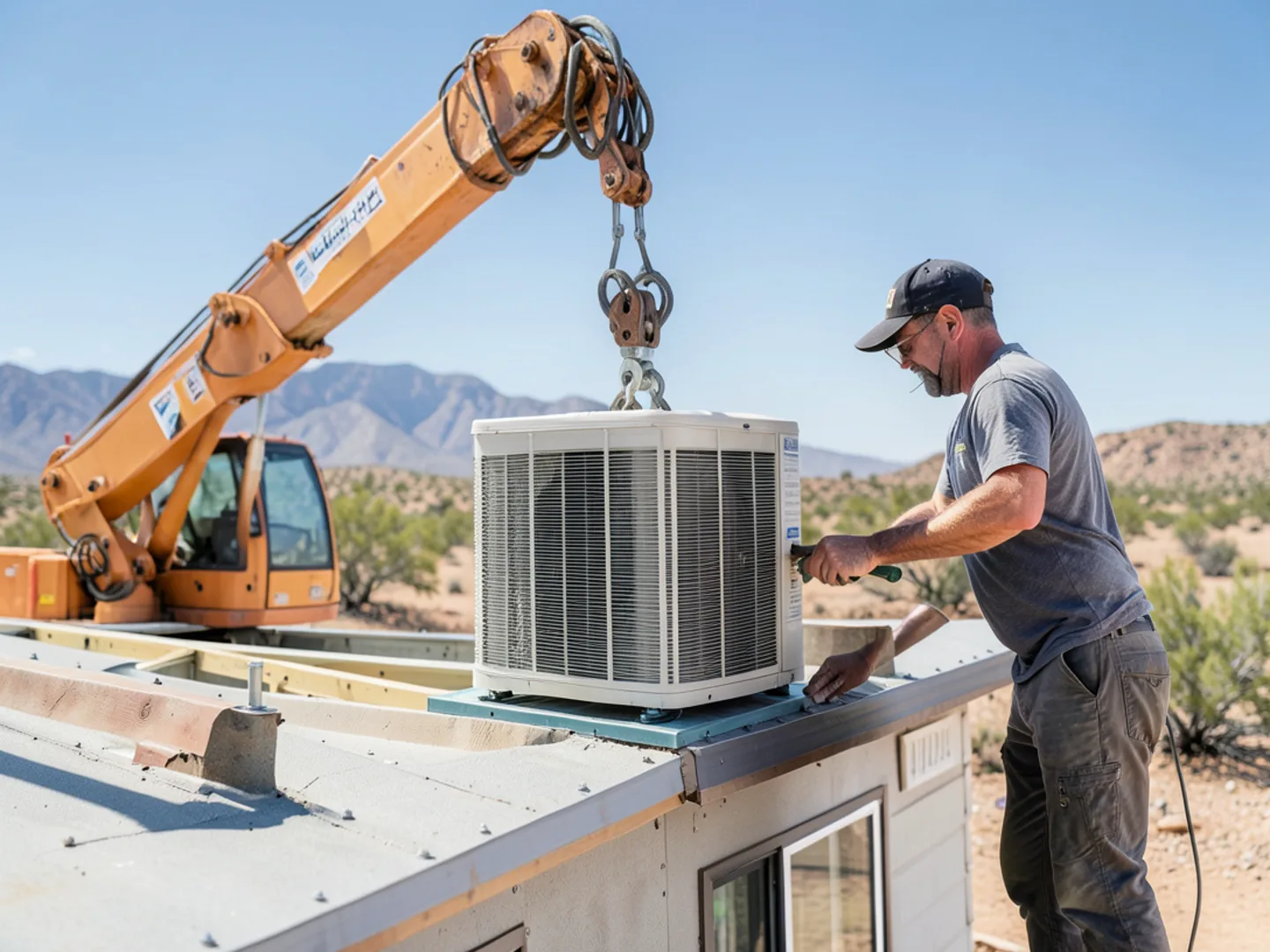

For rooftop package units on manufactured homes, a licensed crane operator lifts the new unit onto a reinforced curb adapter. For split systems, an engineered composite ground pad is leveled on compacted desert soil.
Nitrogen-Purged Brazing & Line Set Connection
Copper refrigerant lines are joined using 15% silver brazing alloy with continuous dry nitrogen flowing through the piping. This prevents copper oxide scale from forming inside lines and clogging expansion valves.
Deep Vacuum Evacuation Below 500 Microns
A high-capacity two-stage rotary vane vacuum pump pulls lines down below 500 microns. A 15-minute standing decay test confirms the system is completely moisture-free and leak-tight before refrigerant release.

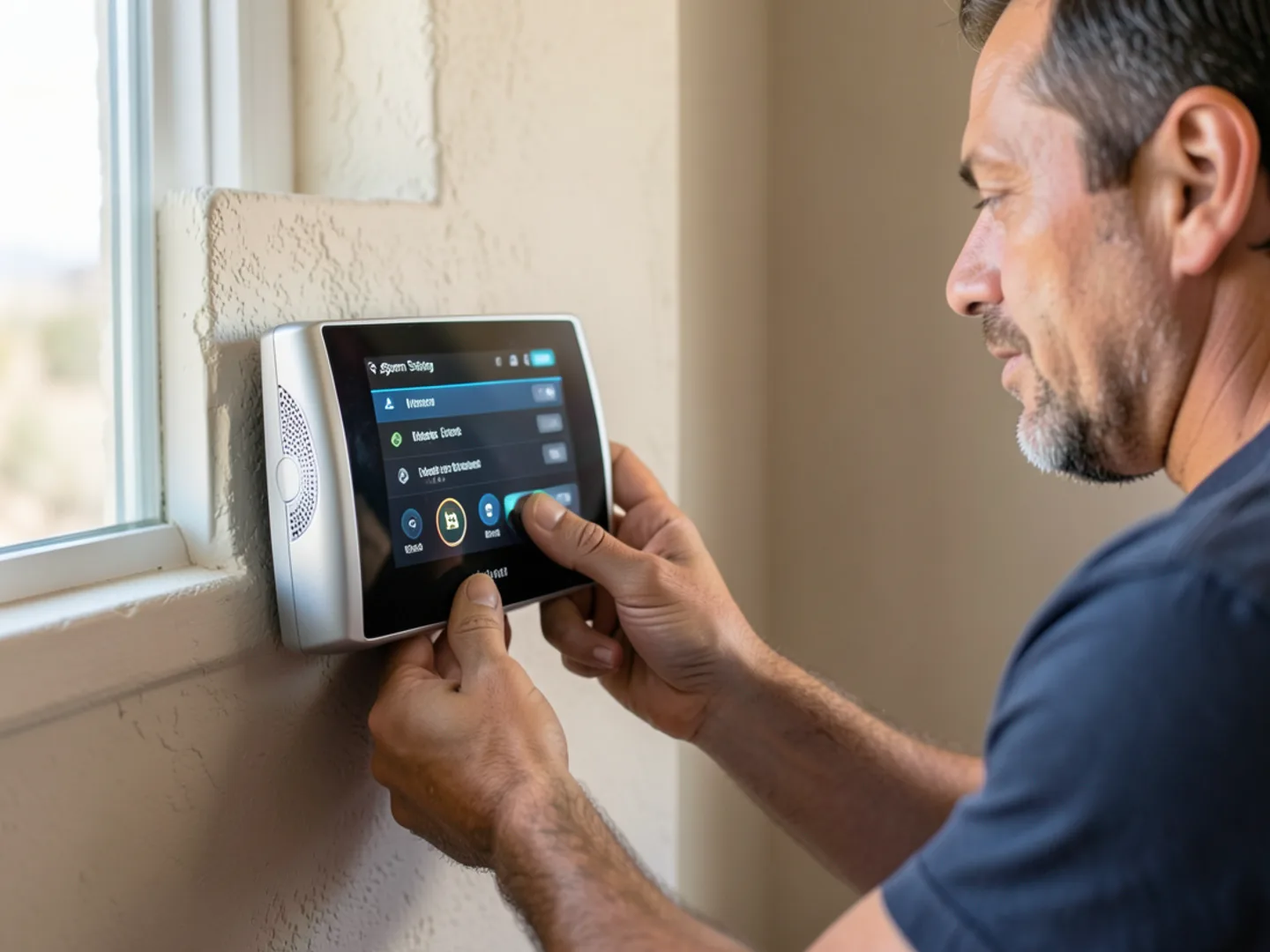

Commissioning, Airflow Verification & Thermostat Setup
Refrigerant is released and superheat/subcooling are calibrated to factory charging charts. The contractor configures the digital programmable thermostat, tests auxiliary heat strips, and confirms 16°F–21°F temperature drop across coils.
Apache Junction AC Replacement Cost Breakdown
A full system replacement represents a major household investment. In the East Valley, typical turnkey installation prices for a standard 3-ton to 5-ton heat pump or air conditioner range between $7,000 and $12,500 installed. Below are the primary variables that influence where your quote falls:
| Equipment Configuration | SEER2 Efficiency Tier | Estimated Cost Range | Best Suited For |
|---|---|---|---|
| Standard Split Heat Pump | 14.3 – 15.2 SEER2 | $7,000 – $9,200 | Single-family homes with existing workable ductwork |
| High-Efficiency Inverter Split | 16.0 – 18.5+ SEER2 | $9,500 – $13,500 | Year-round residents seeking maximum summer electric bill reduction |
| Rooftop Package Heat Pump | 13.8 – 15.0 SEER2 | $6,800 – $10,500 | Manufactured homes & park models requiring crane rigging |
| Ductless Mini-Split (2-Zone) | 18.0 – 22.0+ SEER2 | $5,500 – $8,500 | Room additions, converted garages, or homes without ducts |
City of Apache Junction Mechanical Permit
The City of Apache Junction Building Safety Division charges a $150 residential mechanical permit fee. Qualified contractors include the permit fee in their written quotes, pull the permit, coordinate the municipal safety inspection, and ensure your equipment warranty is registered with the manufacturer.
Crane Rigging & Roof Curb Adapters
For rooftop package installations on manufactured homes along Idaho Rd or Ironwood Dr, mobile boom crane rental fees range from $350 to $650. Custom-fabricated sheet metal curb adapters ($250 to $450) ensure new footprints match older roof penetrations.
Compare Replacement Options with Zero Pressure
Call (321) 666-8870 to schedule an in-home evaluation with an independent local pro who will size your equipment properly and provide transparent written quotes.
Verifying Arizona ROC Contractor Licensing Before Installation
In Arizona, major HVAC installations must be performed by a contractor holding an active license with the Arizona Registrar of Contractors (ROC) under classification CR-79 (Air Conditioning and Refrigeration).
Before signing any installation contract or paying a deposit:
- Visit roc.az.gov to verify active license standing and surety bond status.
- Confirm the contracting entity named on your written quote matches the name on the ROC record.
- Ask for equipment model numbers, SEER2 specifications, labor warranty terms, and disposal inclusions in writing.
Why Connect Through Puzzled Comfort HVAC?
Puzzled Comfort HVAC links Apache Junction residents directly with verified independent contractors specializing in Sonoran Desert cooling installations. When you call (321) 666-8870, you gain access to proven benefits:
Direct Phone Access
Speak directly with knowledgeable coordinators who listen to your cooling challenges and match you with the right local contractor.
No-Pressure Estimates
Receive clear, itemized written estimates with transparent equipment specifications, SEER2 efficiency tiers, and labor inclusions.
Desert Climate Expertise
Contractors understand high-ambient engineering, summer attic temperatures, caliche dust filtration, and manufactured home duct limitations.
AC Replacement Service Areas
Contractors provide full turnkey replacement, crane staging, and permit handling across western Pinal and eastern Maricopa counties:
Gold Canyon, AZ
Custom desert home heat pump installations with high-efficiency variable-speed inverters.
East Mesa, AZ
High-tonnage split system upgrades across Eastmark, Mulberry, and established East Mesa tracts.
San Tan Valley, AZ
Turnkey 4-ton and 5-ton heat pump replacements for 2000s two-story homes with duct optimization.
Queen Creek, AZ
Multi-stage cooling upgrades and smart zoning solutions for expanding family homes.
Fountain Hills, AZ
Hillside split condenser replacements with architectural parapet and quiet operation requirements.
Apache Junction Manufactured Housing
Crane-lift rooftop package heat pump replacements engineered for HUD high static pressure ducts.
Related HVAC Services & Guides
Frequently Asked Questions About AC Replacement
Answers regarding SEER2 requirements, sizing calculations, and local permitting in Apache Junction.
A complete air conditioning or heat pump replacement in the East Valley typically ranges from $7,000 to $12,500 installed for a standard 3-ton to 5-ton system complying with current Southwest 14.3 SEER2 standards. Final pricing depends on equipment tonnage, package versus split configuration, duct modifications, and the city permit fee ($150 residential in Apache Junction).
Plan Your Air Conditioning Replacement with Confidence
Call (321) 666-8870 now to discuss system options, SEER2 efficiency tiers, and local permit requirements with an experienced independent contractor.
